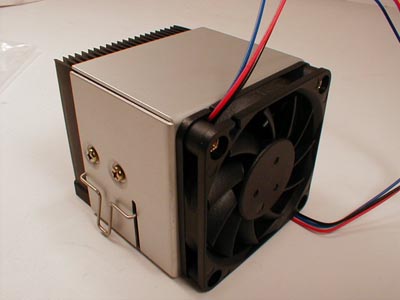

As you can see from the above image, this is what the final kit should look like after assembly.

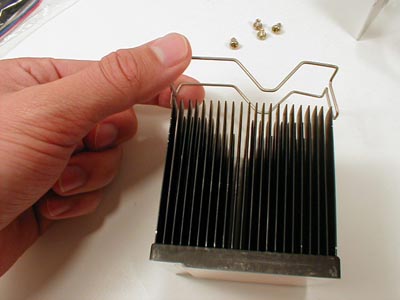

The clip should be installed with the pressure point placed in this direction as shown in the photo above, the CPU core and the pressure point should line up.

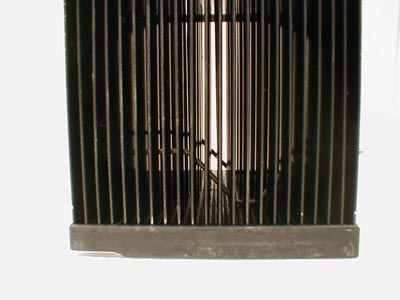

this is incorrect

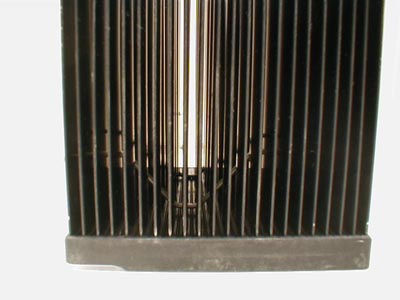

this is correct

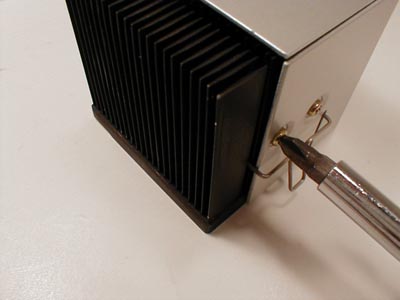

Here you can see how I installed the fan shroud, notice its position relative to the clip.
